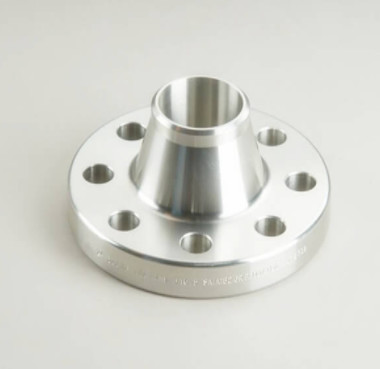

ASME B16.5 A182/A182M F316L 150# 6" SCH 10S Stainless Steel Flange WN RF Pipe Flange

Name: ASME B165 A182A182M F316L 150 6quot SCH 10S Stainless Steel Flange WN RF Pipe Flange
Brand: TOBO
Price: 1 USD

Quality ASME B16.5 A182/A182M F316L 150# 6" SCH 10S Stainless Steel Flange WN RF Pipe Flange for sale

Brand Name : TOBO

Model Number : ASTM A403 Grade WPS31254

Certification : BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : CHINA

MOQ : 0.5-1 tons

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 7500 tons per year

Delivery Time : According to the qty

Packaging Details : in plastic bags then in bundles

Packing : inner poly bag,Plastic Bag+Carton,plywood case or pallet,According customer's requesment

Pressure : Class150/300/600/9001500/2500,Class150,150#-2500#

Name : Flanges

Type : blind,weld neck flange,threaded,Pipe Flange,socket welding

Size : Customized Size

Surface : As customer's requirement

Color : Customer's Requirement

Thickness : standard schedule

Contact Now

ASME B16.5 A182/A182M F316L 150# 6"SCH 10S Stainless steel FLANGE WN RF pipe flange

Referenced documents

The following list of standard apply to these specification:

ASTM standards:

A266/A266M Specification for carbon steel forgings for pressure vessel components.
A675/A675M Specification for hot-rolled, special quality and mechanical properties, carbon steel bars.
A696 Specification for steel bars, carbon, hot-rolled or cold-finished,special quality, for pressure piping components.
A788/A788M Specification for steel forgings, general requirements.
A961/961M general requirements for steel flange, forging fittings, valve and parts for piping applications.

MSS standard:

SP44 Standard for steel pipe line flanges

ASME Standard:

B16.5 Dimensional standard for steel pipe flanges and flanges fittings
B16.9 Wrought steel butt-welding fittings
B16.10 Face-to-face and end-to-end dimensions of ferrous valves
B16.11 Forged steel fittings, socket weld and threaded
B16.34 Valves connect by flanges, threaded and welding end
B16.47 Large diameter steel flanges
ASME boiler and pressure vessel code:

API standard:

API-600 Flanged and butt-Welding-end steel gate valves
API-602 Compact design carbon steel gate valves for refinery use

Terminology

For definitions of other terms used in this specification, find in specification A961/A961M.

Ordering information

See specification A961/A961M.

General requirements

If conflict between the requirements of this specification and Specification A961/A961M. Comply with this specification.

Chemical Composition

A The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%.
B The sum of chromium and molybdenum shall not exceed 0.32%.

Heat treatment

Heat treatment is not required except for flanges above Class 300, flanges of special design where the design pressure or design temperature are not known and for items over 4" NPS and above Class 300. When heat treatment is required, annealing, normalizing, Normalize and temper, normalize and quench and tempering shall be the applied methods.

Welding

These components can be welded. Welding procedures must comply with ASME Boiler and Pressure Vessel Code Section IX.

Forging

ASTM A105 carbon steel can be forged at temperatures in the range of 2200 to 1700 F followed by quenching and tempering or normalizing.

Annealing

Forged parts can be cooled to below 1000 degrees Fahrenheit and then heated to between 1550 degrees Fahrenheit and 1,700 degrees Fahrenheit. Then carry out slow furnace cooling.

Hydro-static Test

Hydro-static Test shall be conducted by the forging manufacture only when Supplemental S57 of ASTM A961 is specified.

Elongation

ASME B16.5 A182/A182M F316L 150# 6" SCH 10S Stainless Steel Flange WN RF Pipe Flange

FAQ

1.How can I get the price?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

3.What is your lead time?

-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.

4.What is your payment term?

-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
